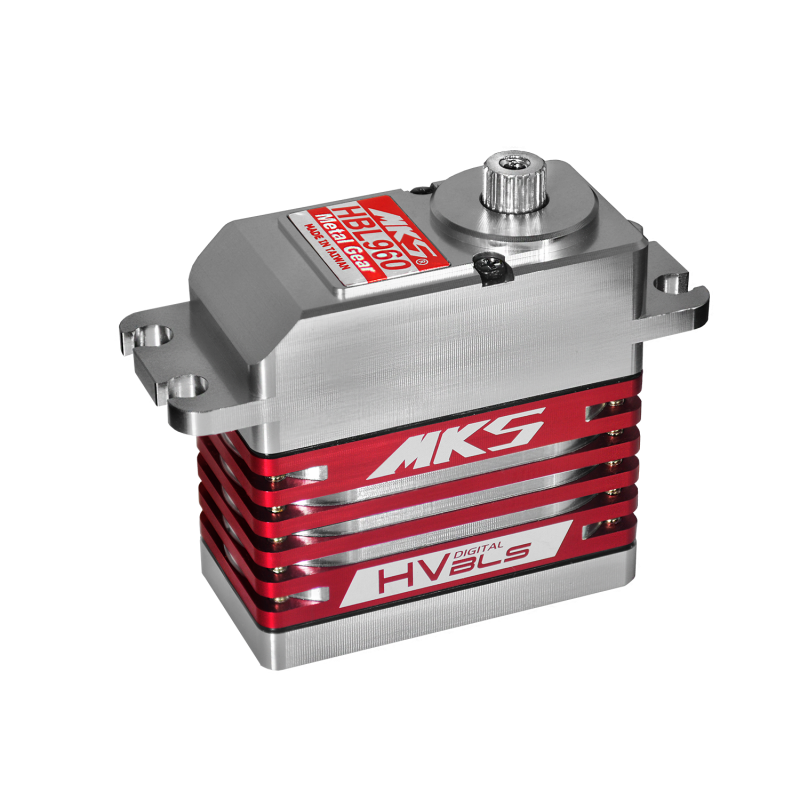

HBL960

R 2,415.00

In stock

SKU

S0010012

Torque (6.0V): 13.6 kg-cm / 188.9 oz-in

Torque (7.4V): 17 kg-cm / 236 oz-in

Torque (8.2V): 18.6 kg-cm / 258.3 oz-in

Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)

Weight: 70.15 g (2.47 oz)

Dimension: 40 x 20 x 40 mm

SERVO SPECIFICATION
Torque (kg-cm)	13.6 (6.0V) / 17 (7.4V) / 18.6 (8.2V)
Torque (oz-in)	188.9 (6.0V) / 236 (7.4V) / 258.3 (8.2V)
Speed	0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Stall Current (at locked load)	2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage	6.0V ~ 8.4V DC Volts
Working Frequency	1520μs / 333Hz
Dead Band	0.0008ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Brushless Motor
