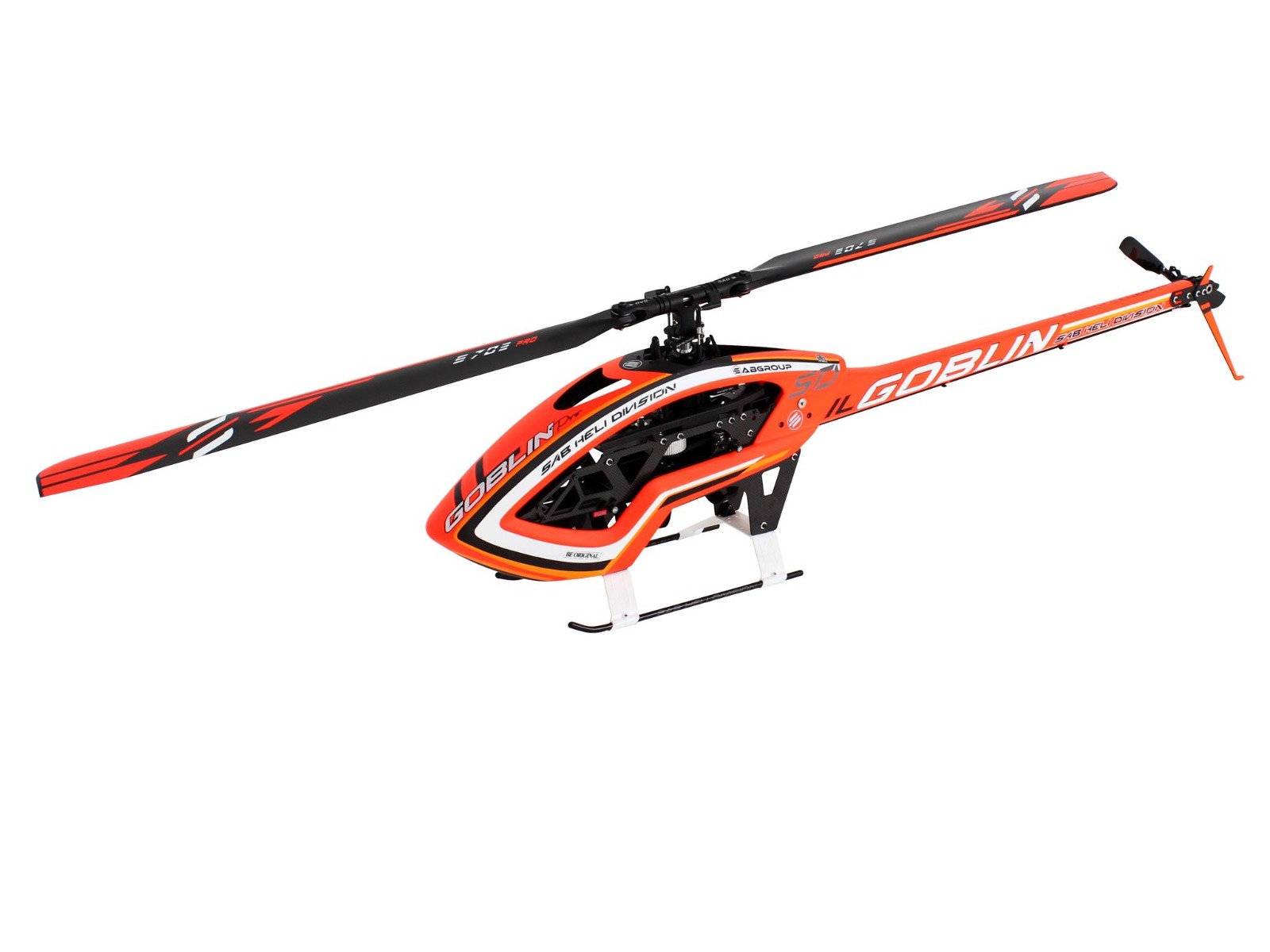

SG760 ILGoblin PRO Orange

The new ilGoblin PRO represents a significant technological advancement in RC helicopters, with a complete redesign compared to previous models.

Here are the main innovations:

Main transmission:

•             The main transmission is based on the renowned GOBLIN gearbox, now further improved.

•             The main shaft diameter has been increased to 15 mm for increased rigidity.

•             New helical gears for increased durability and strength.

•             New One-Way system, redesigned for optimal performance.

•             A fast disassembly servo mount that allows for easier and faster maintenance on the servos.

•             The new gearbox is lighter than previous models.

Rotor head:

•             New design that features new blade grip arms with an improved locking system.

•             Self-Centering Titanium washers that ensure automatic centering for greater precision.

•             Possibility of adding a pivot shaft for the spindle allowing customization of rigidity and maximum movement.

Tail rotor:

•             8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.

•             The shaft and the Hub are made from a single part in order to have maximum precision.

•             The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preferences.

Tail boom:

•             Made with high-pressure molding technology and its weight is only 180 gr.

•             Includes a belt tensioning system with an indicator for optimal control

Canopy and blades:

•             With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.

•             The blades in the kit are the new S702, with new profile and dynamic performance, color-matched to the canopy.

•             The tail blades are S110 with a new design for improved performance.

Specifications:

•             AIRFRAME weight: 2178 gr (no blades, no battery, no electronics).

•             Main rotor diameter: 1576 mm (with 700 mm blades).

•             Main blade length: 650 to 730mm.

•             Tail rotor diameter: 292 mm (with 110 mm tail blades).

•             Tail blade length: 105 to 115 mm.

•             Cyclic Servos: Standard size 40mm.

•             Tail Servo: Standard size 40mm.

•             Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).

•             Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1).

•             Main shaft 15 mm, Tail shaft 8 mm.

•             Molded carbon tail boom.

•             Motor 12S, 480/560 KV.

•             Battery room: 50x60x300 mm.

KIT Includes:

•             21T motor pulley (other pulley sizes available).

•             2 battery trays with integrated connectors.

•             S702 Orange (700 mm main blades).

•             S110 Orange (110 mm tail blades).

15mm main shaft

The main shaft diameter has been increased to 15 mm for increased rigidity.

Grip arms reference

New design that features new blade grip arms with an improved locking system.

Wider mixing arms bearings zone

New design mixing arms, easy to assemble with out any play.

Self center titanium blades washers

Self-Centering Titanium washers that ensure automatic centering for greater precision.

New main plastic ball linkage

New design plastic ball linkage which is stronger and last longer, make manternance time less

New swashplate geometry

New Swashplate geometry maximize the precision.

New gear box

The new gearbox is lighter than previous models.

New helical gears for increased durability and strength.

Easy remove servos front and rear

A fast disassembly servo mount that allows for easier and faster maintenance on the servos.

3rd bearing support with stronger One Way Bearing

New One-Way system, redesigned for optimal performance.

3rd bearing support includes in the kit

Tail belt tensioner

Includes a belt tensioning system with an indicator for optimal control.

New boom design, only 180 grams

Made with high-pressure molding technology and its weight is only 180 gr.

New tail push rod

With new tail push rod design, there is no more the need to CA/Epoxy them at all, just locktie and go fly.

8mm tail shaft

8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.

Tail Shaft and tail Hub only 1 piece

The shaft and the Hub are made from a single part in order to have maximum precision.

Quick connect battery

With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.

New battery locking system

New battery locking system make secure battery super easy.
