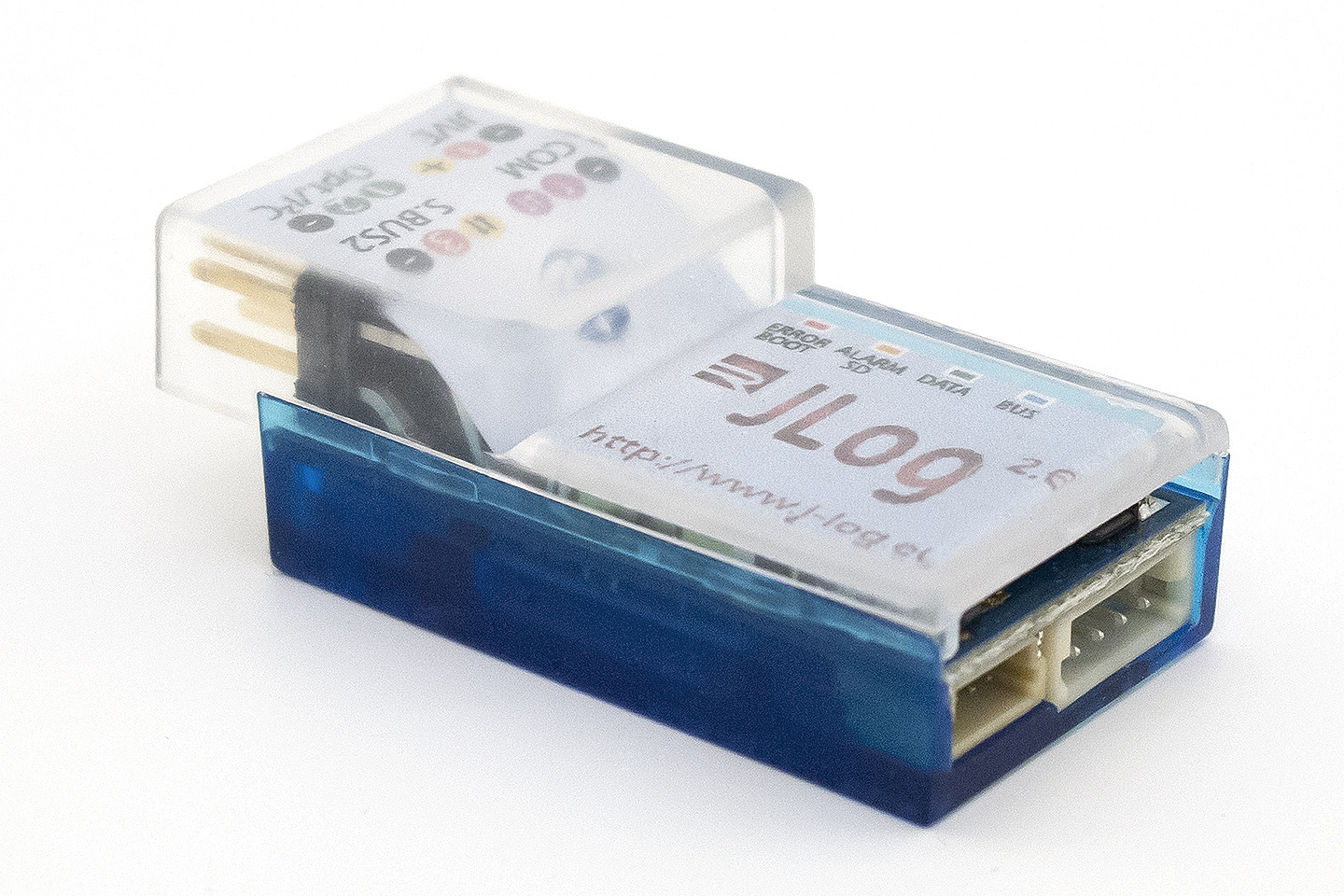

JLOG2.6 GW

R ² prototyping - JLog2.6-GW


With JLog2.6GW the desire of users will be complied, to get a pure telemetry gateway, cheaper, and finally the KontronikESCs KOSMIK and Castle Creations ICE / EDGE have their own logging, if that does respect motorRPM and / orrotorRPM may not be with the logging of JLog is comparable, and in other derived data values??. In addition JLog logsits own sensors, ESC external temperatures, speed, speed. HV ² BEC, voltages and cell voltages with CVS16. CVS16 is also more than a measuring sensor, by performing a statistical monitoring a battery pack in flight, "health surveillance".

The feature of Enabling JLog2.6GW is independent of the firmware, which is the actual application. The advantage for the buyer is that he gets to JLog2.6 (full) identical hardware. This is the basis that, should he choose, at any time, but to want more of JLog, which can easily comply by purchasing a key. From GW (pure telemetry gateway) can be as LO(pure logger without telemetry) or FULL will be functionally identical to JLog2.6 (full). Alarm Lines for alarm signaling in the model are always supported open format live stream and "boxes" (JETIboxen, UniDisplay, HoTT SmartBox) are treated as "telemetry".
The microSD card is still getting used to configure and update even status files are written as "version.txt", eg


Also JLog2.6-GW has a data bus via the CVS16 (Cell Voltage sensor), and other sensors such as complex HV ² BECand MS 1 can be connected. This has the advantage that complex sensors are now over and connected in parallel to each other, regardless of whether JLog interfaces are needed for other purposes.

The configuration is done with JLC6

It will only be max. 3 digtal temperature sensors supported. Log In Speed ??takes the position of EXT: Temp1 and HV ²BEC-Temp's position formerly EXT: Temp2.


CVS16 or HV ² BEC or CVS + HV ² BEC are supported at the data port, the future also MS-1.


Where possible, telemetry displays "redefined dynamically" depending on configured JLog-own sensors, includingsensors CVS16 complex and HV ² BEC, - where appropriate, also depending on the operating state of a sensor. The latter concerns the CVS16: Detected a "Battery Pack", are the displays LCV (Lowest Cell Voltage) and LCN (cell numberof LCV) zV In addition, U bat is automatically replaced by Pack Voltage of CVS16, otherwise U.sub.bat the value of ESC.Likewise, automatically replace Ubec, Ibec and TBEC (temperature) with values ??from the HV ² BEC. This also applies to the log. - Dynamic reshuffle of telemetry display is currently in Jeti EX, multiplexing, and some with HoTT. (The display configuration for Jeti EX and multiplex in JLC6 reflects this multible use.)


Alarms: In JLC6 can now also be set an alarm threshold on LCV and on the temperature of the HV ² BEC.


Is CVS16 configured JLC6 opens for a sub window in which one adjusts setup values ??JLog forwarded to the CVS16.


HPW (High Warning PWM) has been removed from JLC6.


A voltage sensor in the form of a voltage divider 1:5 for measuring a DC voltage of 0 V .12,8 is no longer supported.Instead, can be used for such purposes CVS16, for up to 16x 0 .73 V (greater than 65V at your own risk).


The bundling with addons in the different firmwares, concerning OpenFormat Live Stream and "boxes" (Jetibox byJETIv1, UniDisplay) has changed, the JLog2.6 downloader reflects it in the selection.


JLog2.6 on a Castle Creations ICE / EDGE: In practice, with Castle Link Live, it can lead to data errors from different, often non-systematic reasons. JLog therefore used different filters F1 to systematically wrong light emitted by the CCdata (stateful), F2 against glitches and transmission errors. F3 can now be turned off by JLC on / off. F3 filter removeseven more data outliers. His More Information
